For contrasting markings or teeth to be detected of more than 2 mm
When you want to implant the sensor in a threaded mechanical environment M5 X 0.5
On turbomachines, for calibration of other sensors or substitution to other sensor technologies.
- Above 1 meter in length, over-sheathing is required (Ref. SURG)
- Prefer mounting in a support with a smooth hole and nuts: practical orientation of the probe without applying torsion.

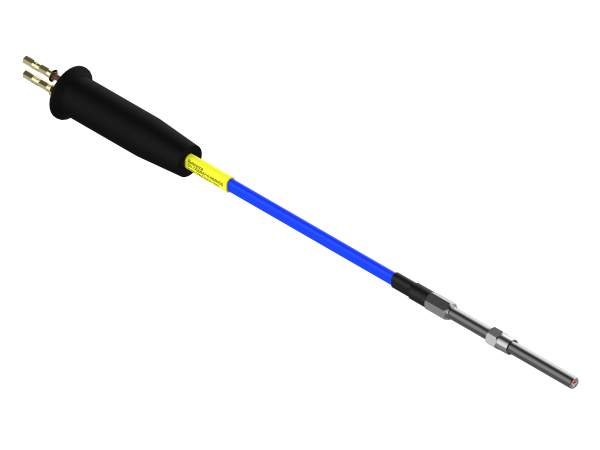

Optical fibre-bundle probe
Operating mode proximity
Reading head oriented in two half-moons
M5x0.5 threaded end with a length of between 15 mm and 60 mm.
Hexagonal head for easy assembly
