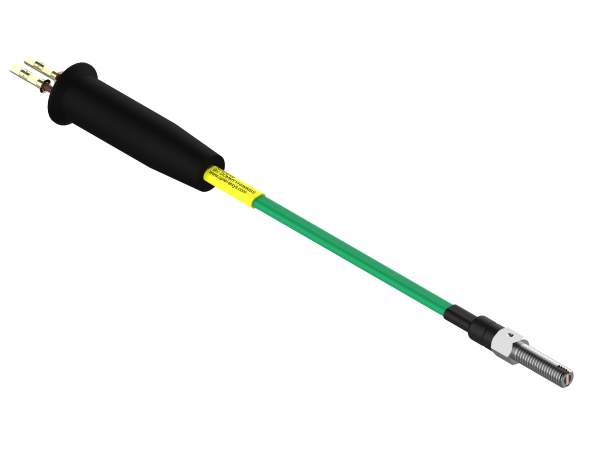

MULTI SLIT YO HM6

High-resolution proximity probes
End piece threaded M6
Reading fine and contrasting markings

Download Data-sheet

When to use it? Technical specifications

For contrasting markings or teeth to be detected larger than 0.5 mm
When you want to implant the probe in a complex mechanical environment and you have a screw mount.
Recommendations :
- Above 1 meter in length, the oversheathing is necessary (Ref. SURG)
- Prefer the mounting in a support with smooth hole and nuts: practical orientation of the probe without applying torsion
- The SPIRAL option can also be beneficial

Optical fibre-bundle probe
Operating mode proximity
High resolution juxtaposed read head
Highly resistant fibre-bundle probe
The SLIT finish allows the detection of small marks or teeth and retains the entire sequence to be detected.
The SLIT is mounted in an M6 threaded environment as standard over 20mm in length but can be made in our workshops to lengths of up to 100mm.
SLIT can be made to specification with other threads and to other standards or materials.

MULTI SLIT YO HM6
